Smart Flex DL15+
Fuel efficient and optimized traction performance for long and regional haul
-
Long Haul
Fuel efficient and optimized traction performance
for long and regional haul
.jpg)
Zigzag Groove
Main four zigzag grooves deliver great traction performance.
Rib+Semi Lug
Combined structure of rib and semi block pattern provided excellent stability which enhances both handling and fuel efficiency.
Wide Closed Shoulder
Enhances stability and fuel efficiency allowing smooth wear.
.jpg)
3-Dimensional Sipe
Delivers even wear and optimized traction performance reinforcing inter-locking between blocks.
.jpg)
Self-Regeneration Sipes
Turns out as groove at the mild and latter stage of use and it keeps excellent traction performance in every condition until the end of wear.
Bottom Round Edge Sipes
Round at the end of sipe prevents crack and tearing.
.jpg)
-

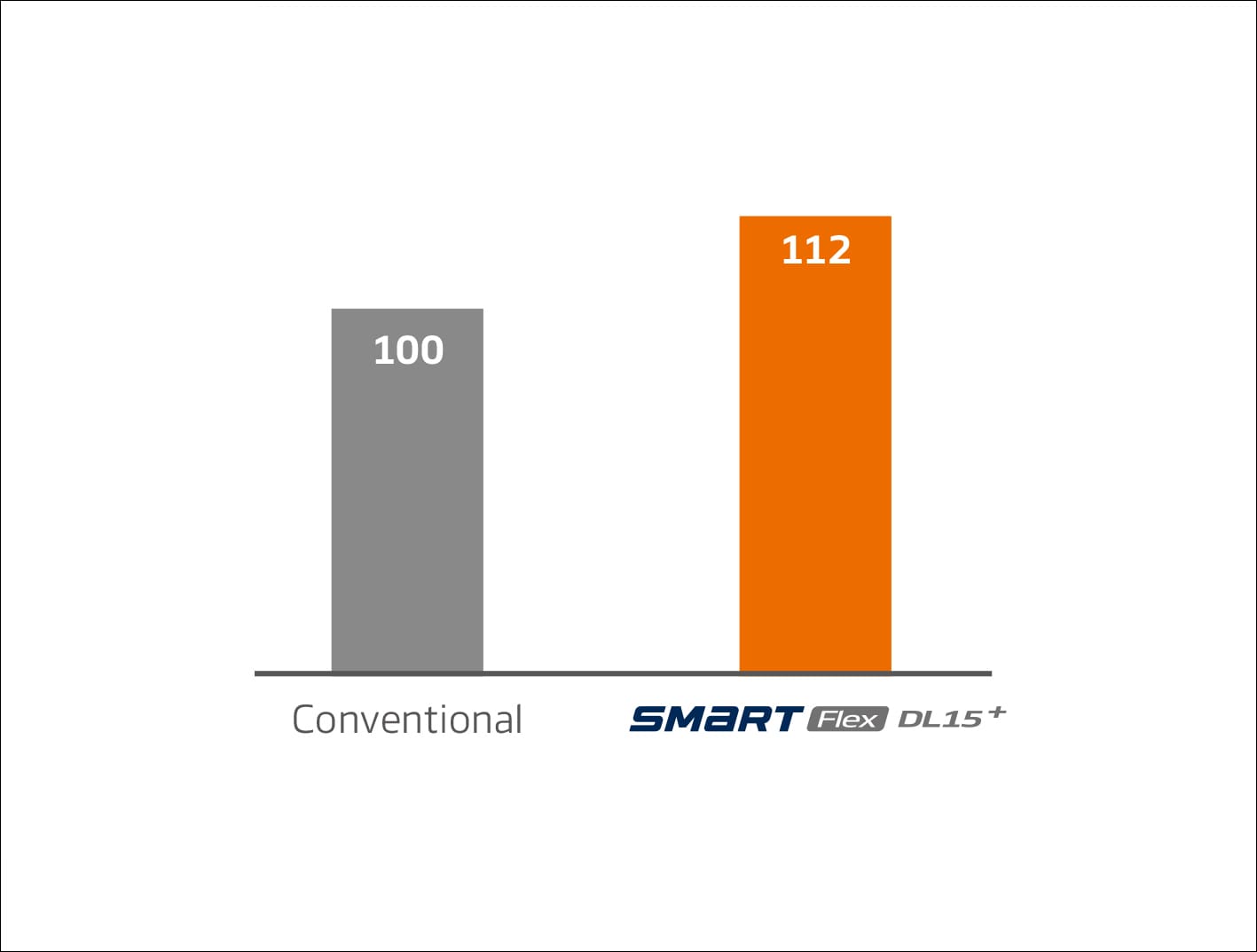

Test Results (RRc)
Highly Improved performence in RRc compared to its predecessor
Highly Improved performence in RRc compared to its predecessor
-
Specs
- 22.5”
-
11R22.5
- Material Code 3004005
- Tube Type / Tubeless L
- Ply Rating 16
- Measuring Rim 8.25×22.5
- Section Width(mm) 285
- Section Width(inch) 11.2
- Tread Width(inch) 9.6
- Tread Depth(mm) 19.7
- Tread Depth(32nds) 25
- Static Loaded Radius(inch) 19.5
- Overall Diameter(mm) 1060
- Overall Diameter(inch) 41.7
- Tire Weight(lbs.) 134
- M+S Y
- 3PMSF Y
