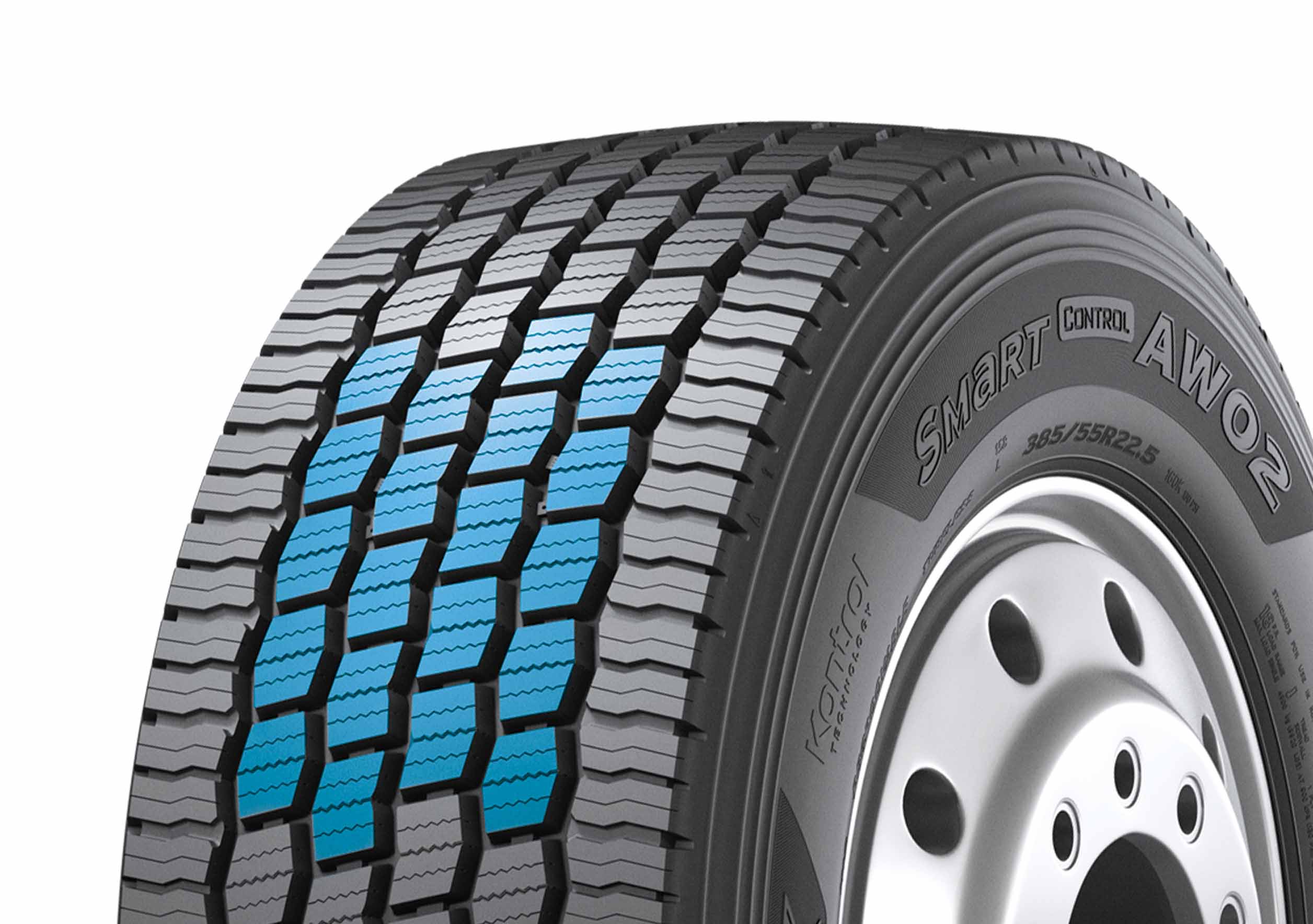

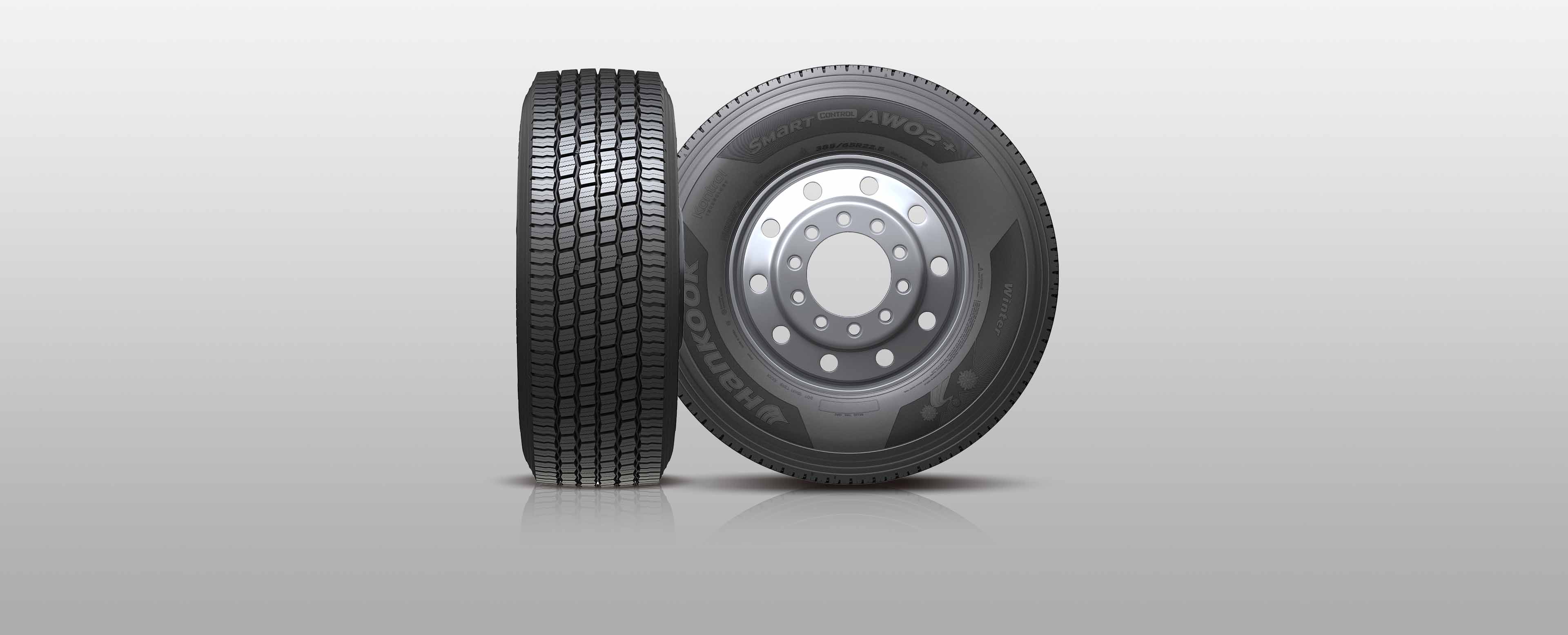

Smart Control AW02+
The all-position winter tire designed for severe weather conditions.
-
Winter
/tt/steer(all)-tractor-trailer-1.svg){kind=icon}
/tt/steer(all)-tractor-trailer-2.svg){kind=icon}
All position winter tire for severe weather conditions
1.jpg)
Design Features

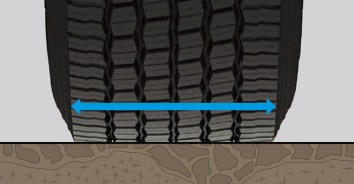

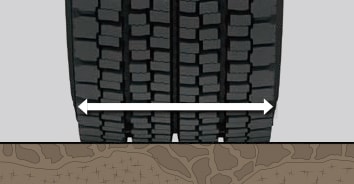

Wide tread design
Improved contact shape and design provides better driving performance.
-
Conventional
-
SmartControl AW02+

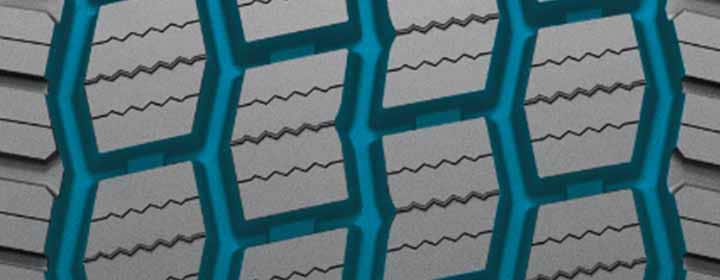

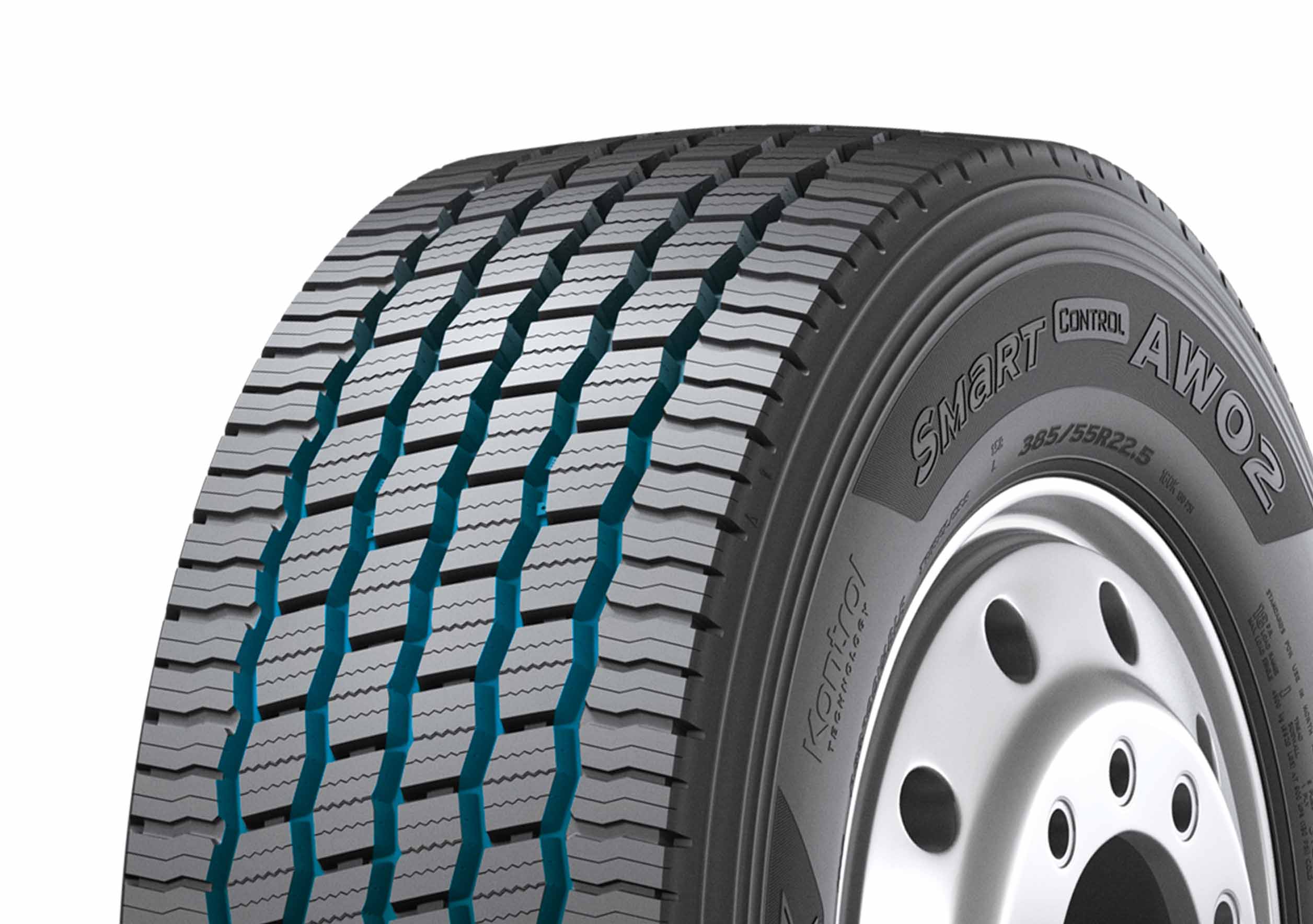

Zig-Zag 5 grooves design
Provides excellent traction on icy and wet road condition.
.jpg)
.jpg)
Design Features

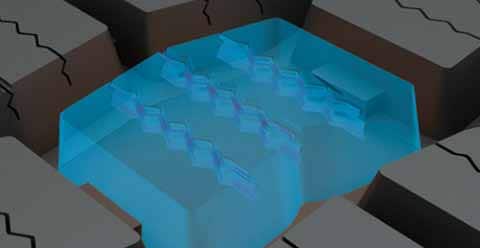

3-Dimensional Sipe
Deliver excellent mileage and traction performance with reduced irregular wear which enhances fuel efficiency.
.jpg)

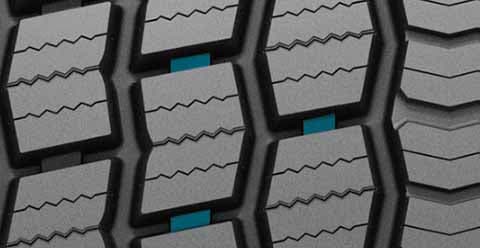

Tie bar
Increases block stiffness.
.jpg)
.jpg)
-

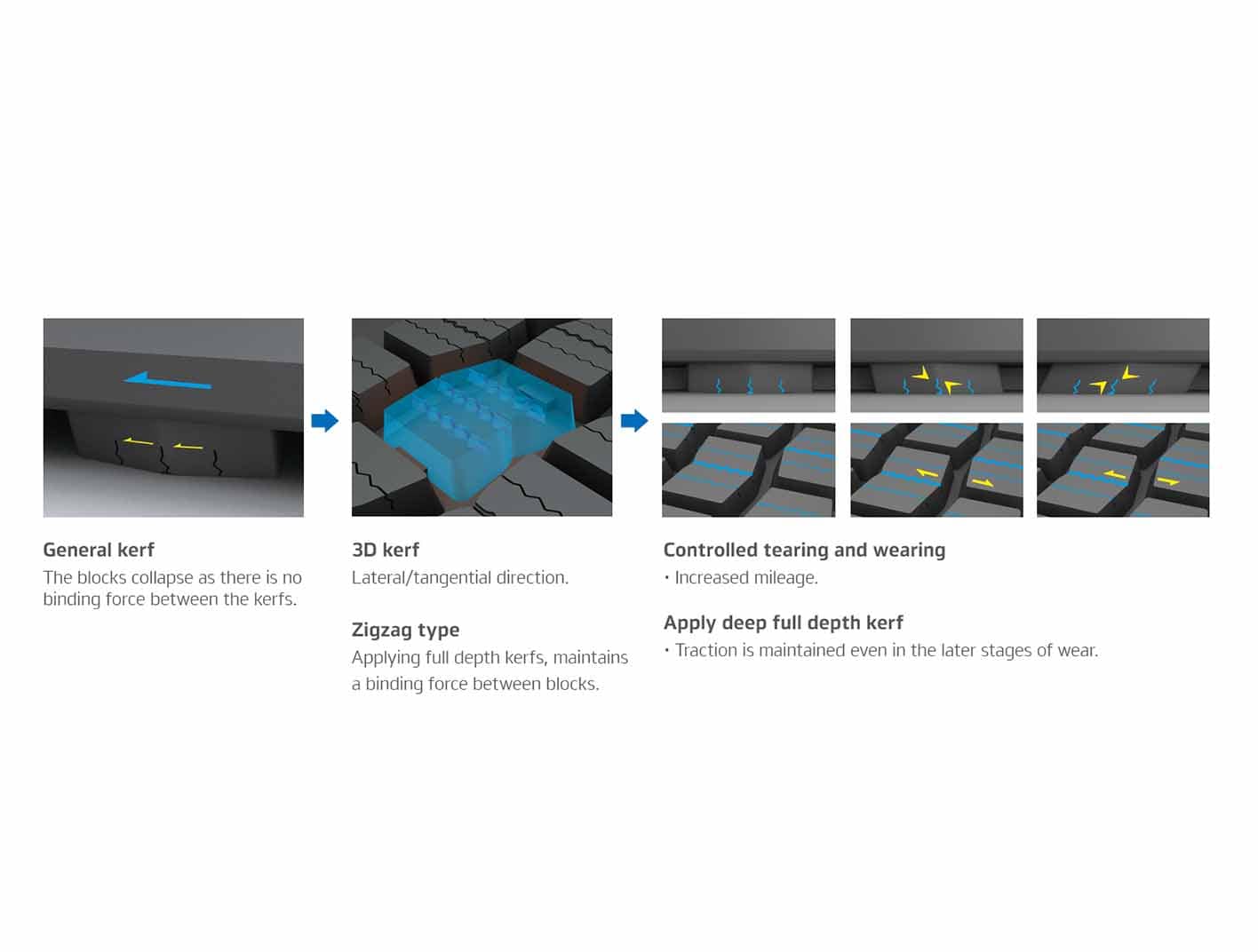

3-Dimensional Sipe
Enhanced traction performance improves mileage and minimizes uneven wear, resulting in a uniformity of the rib's stiffness.
_0.jpg)
Enhanced traction performance improves mileage and minimizes uneven wear, resulting in a uniformity of the rib's stiffness.
-

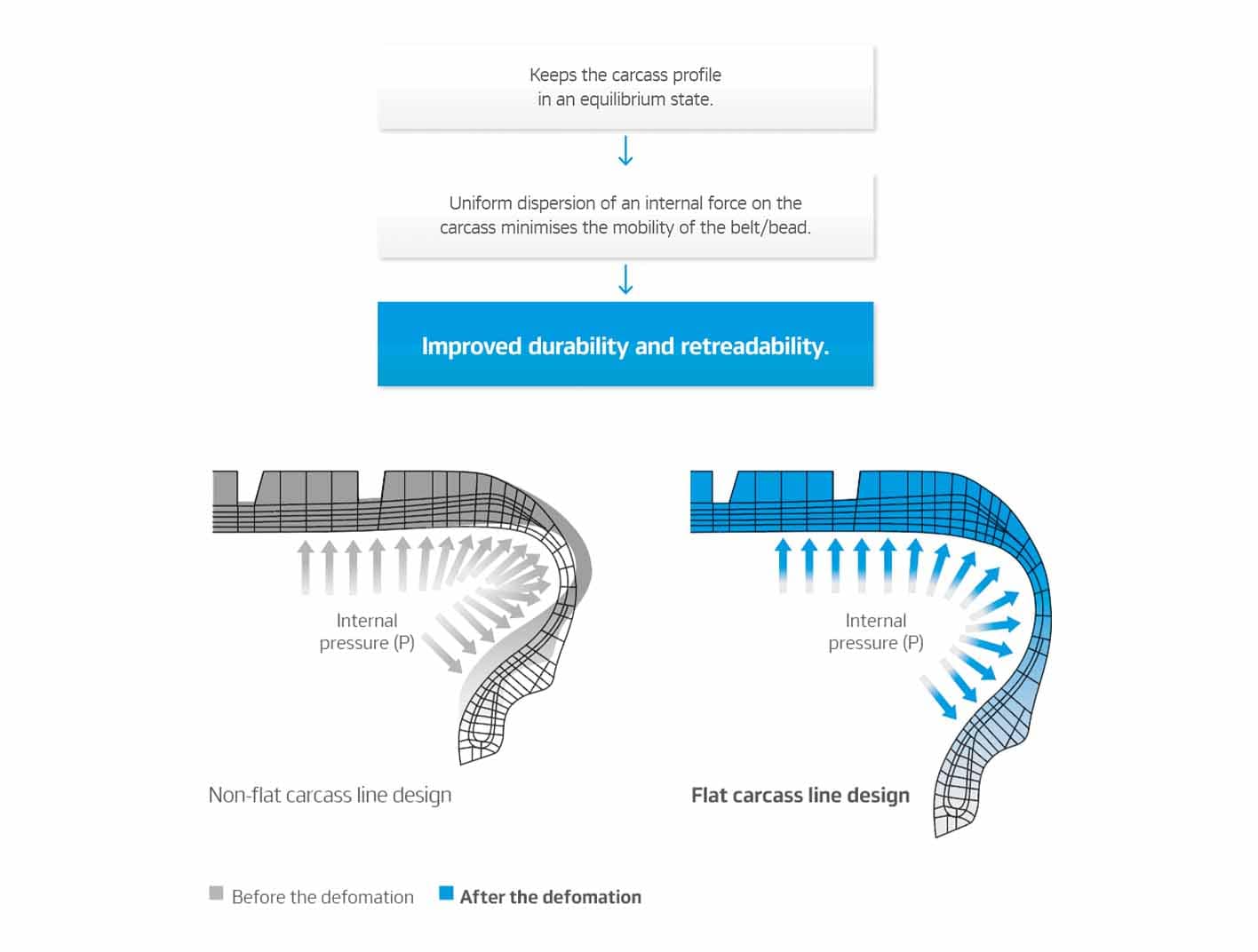

SCCT Technology
SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT technology controls the dispersion of internal force for better durability.
_0.jpg)
SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point, belt edge or carcass turn up edge. In contrast, SCCT technology controls the dispersion of internal force for better durability.
New tread compound
.jpg)
_6.jpg)

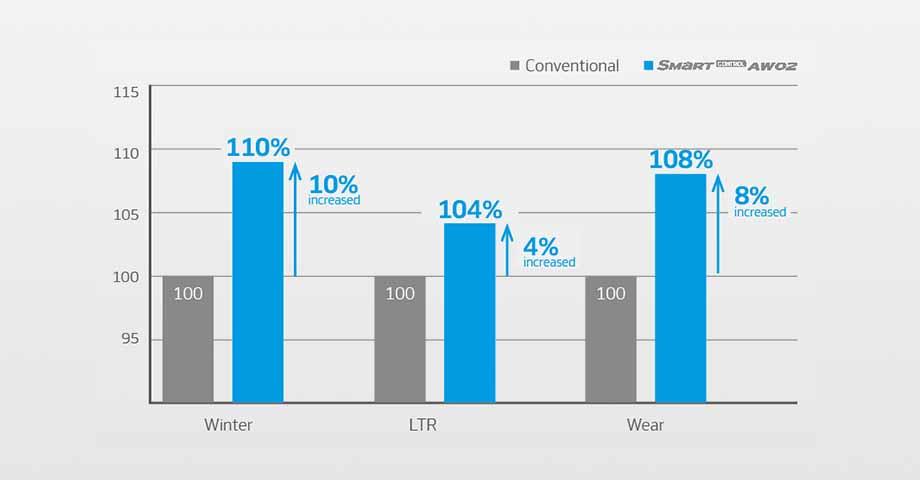

New winter compound technology
By adding a low Tg synthetic rubber to the compound, not only does it enhance winter performance it also helps to increase mileage and ensure low fuel consumption.
-
Spec
- 22.5”
-
385/65R22.5
- Material Code 3003982
- Tube Type / Tubeless L
- Ply Rating 24
- Measuring Rim 11.75X22.5
- Load Index 164K
- Section Width(mm) 385
- Section Width(inch) 15.2
- Tread Width(inch) 12.1
- Tread Depth(mm) 15.5
- Tread Depth(32nds) 20
- Static Loaded Radius(inch) 19.6
- Overall Diameter(mm) 1078
- Overall Diameter(inch) 42.4
- Tire Weight(lbs.) 155
- M+S Y
- 3PMSF Y
